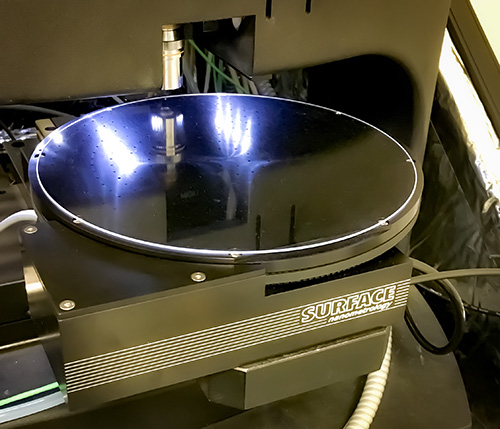

Vacuum chuck for 200 mm wafer

Sample tray
Vacuum chuck
Click to enlarge

Click to play video

Key Features

  • Rotatable sample area 200 mm in diameter for full 8″ wafer
  • Motorized rotation by stepper motor and tooth belt
  • Top shower plate exchangable for different wafer thicknesses
  • Pumping, venting and locking are contolled by software
  • Complete setup with contoller, diaphragm pump and tubings
  • Fits to G200 Nanoindenter sample tray
  • Whole wafers can be measured without re-mounting


Sample tray
Vacuum chuck with controller and vacuum pump
Click to enlarge
Sample tray

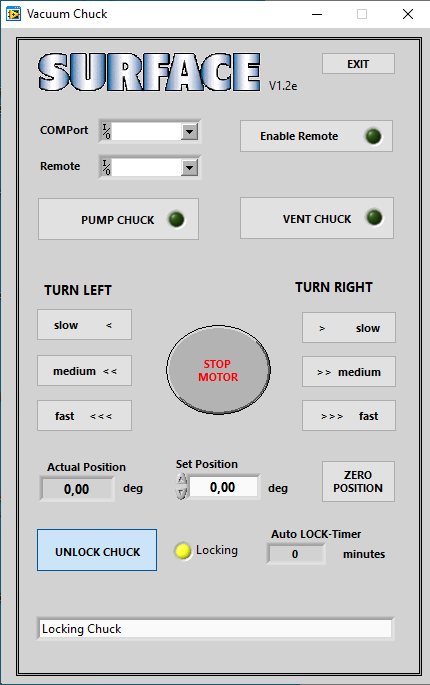

Control software interface
Click to enlarge
  • Automated wafer tests
  • Quality control
