Digital humidity controller

Key Features

Sample tray

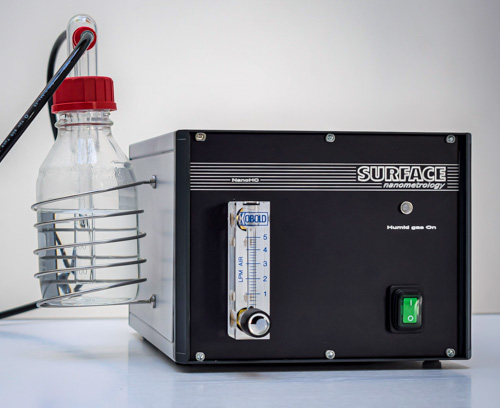

Humidity controller with humidifying bottle
Click to enlarge
  • The humidity contoller is designed to deliver humidified purging gas
  • Dry purgig gas is mixed with humidified purging gas
  • Total flow is set by needle valve flow meter
  • External digital humity and temperature sensor
  • PID contol of humidity at sensor / sample location
  • USB - Interface to PC for remote control
  • Sensor range 0 ...100 % RH
  • Sensor resolution: 0.03 % RH, accuracy +-1.8 % RH





Application

Sample tray

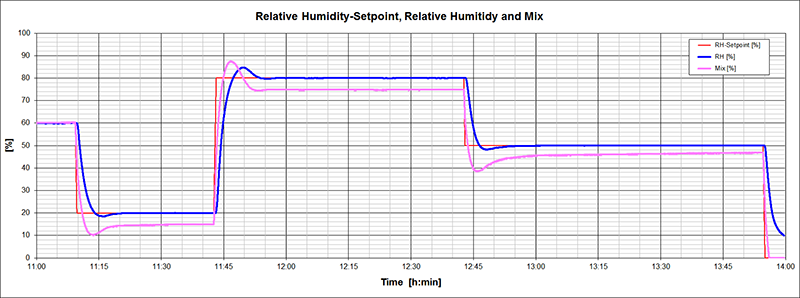

Humidity controller performance curve
Click to enlarge
  • Nanoindentation
  • Atomic force microscopy
  • Polymer testing
  • Biological samples
