sm@rt 500 Nanoindenter - The smart way of material research

Key Features

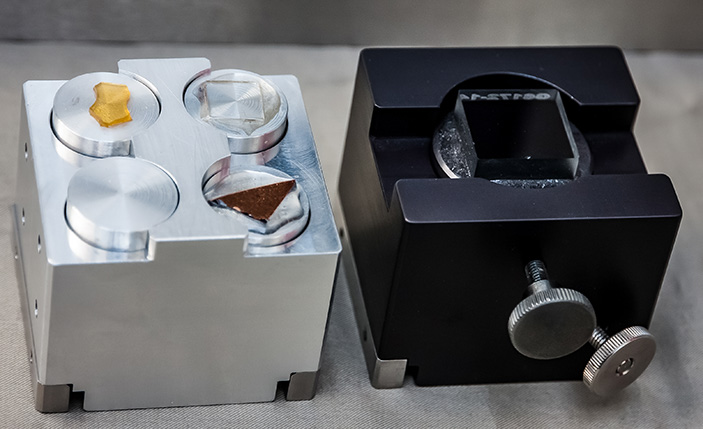

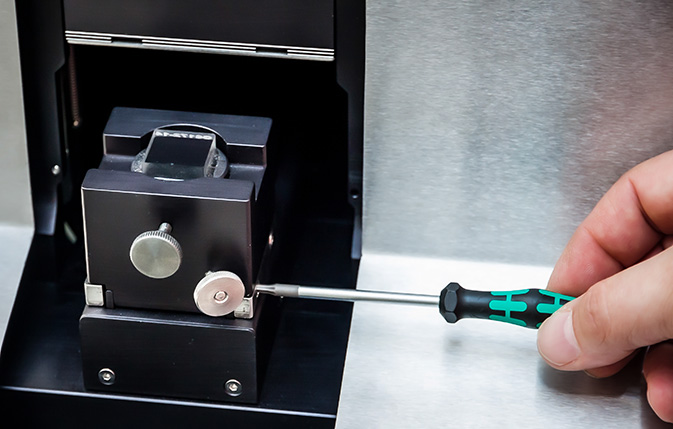

Sample tray
Solid and compact layout
Click to enlarge

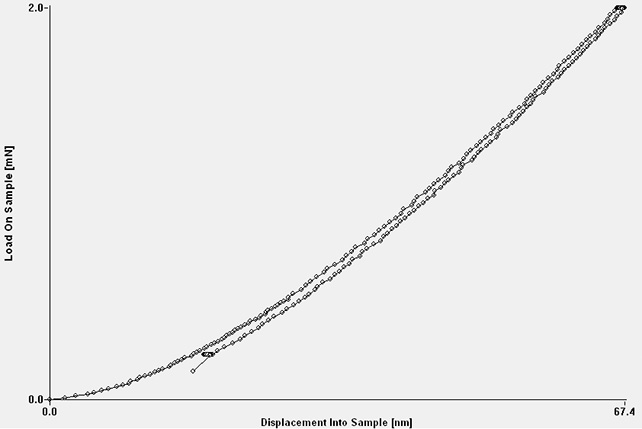

  • Powerful transducer ranging from μN to ~N.
  • Fully integrated high resolution video microscope.
  • Three axis motorized positioning system for various sample stages.
  • Solid frame for robustness and reliable testing.
  • Real time data processing by dual core microcontroller (DSP).
  • The instrument is designed with priority to highest accuracy and reliability.








Application

Sample tray

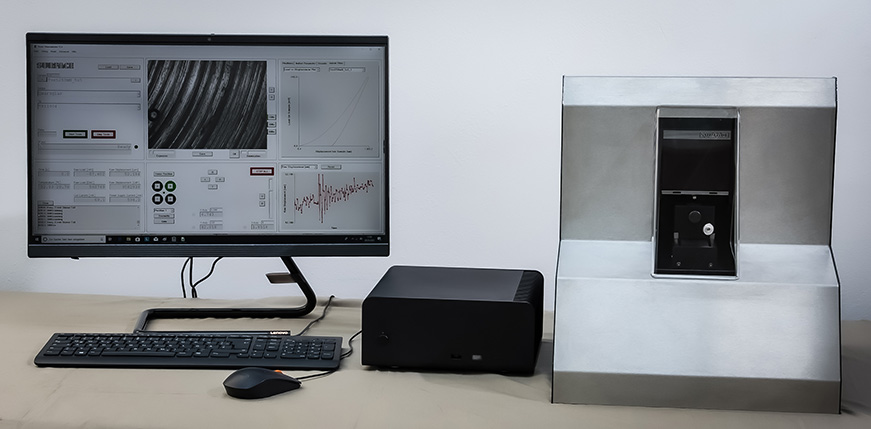

The whole setup offers a small footprint
Click to enlarge

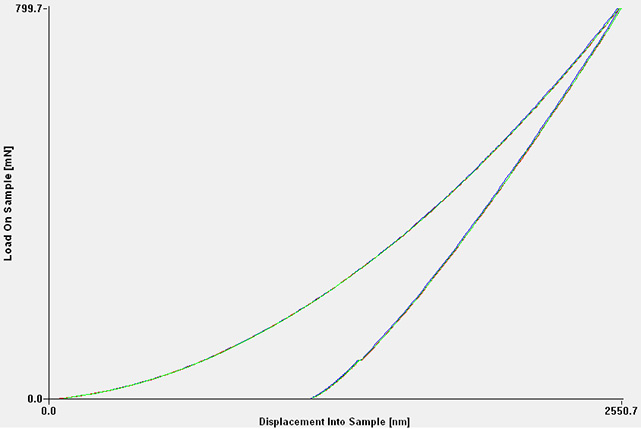

  • Fully automated tests to determine hardness and modulus
  • Standardized tests to comply with ISO 14577
  • Optical microscopy
  • Customized test procedures
  • Material research
  • Quality control








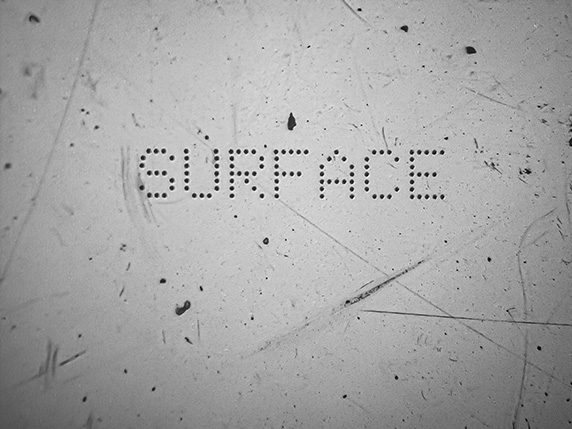

Video microscope, 5MP for selecting position and inspection

Sample tray

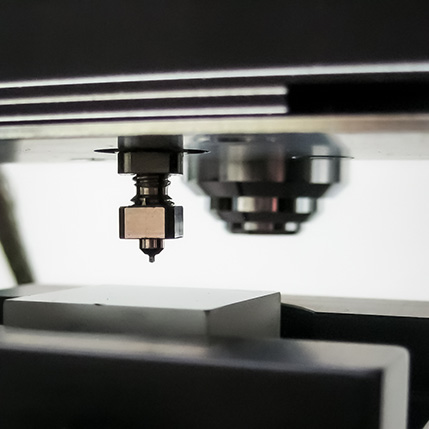

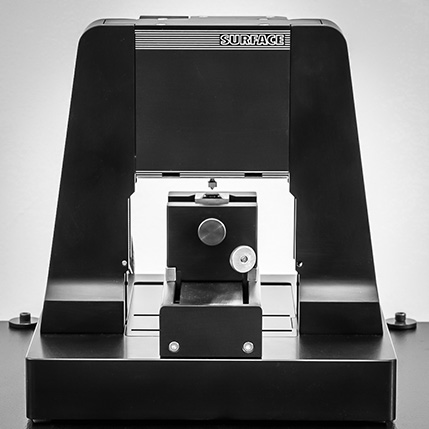

Front view, microscope objective close to indenter tip
Click to enlarge
Sample tray
Compact microscope on backside of indenter frame
Click to enlarge

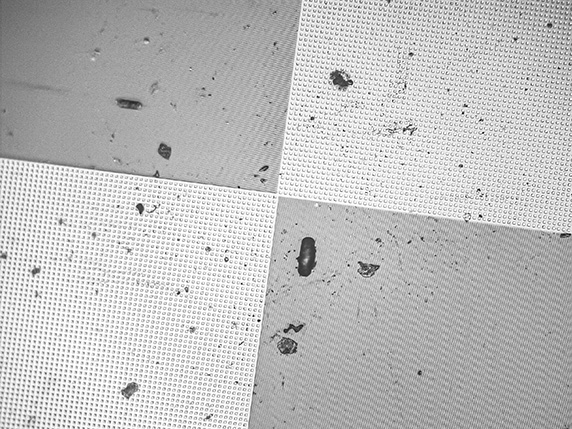

  • Combines large field of view (0.8 * 1.1 mm) with high resolution / magnification
  • Magnification selectable in software from 150x to 600x (100% scale), extended to 2400x (400%)
  • digital resolution: 0.4 μm / pixel
  • optical resolution: approx. 2 μm












Smart software package

Sample tray

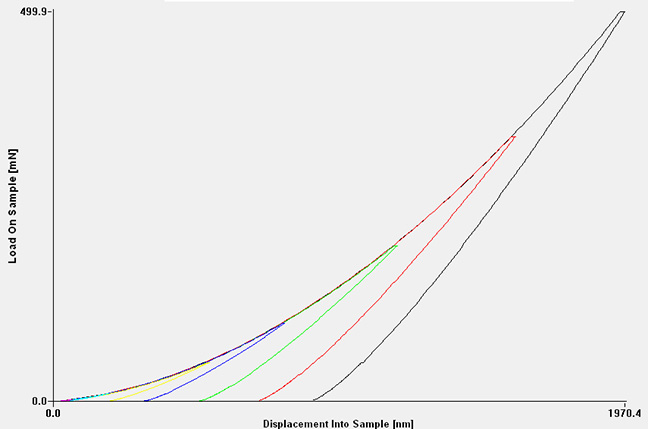

For advanced users: Powerful post processing of the measured data
Click to enlarge
Sample tray

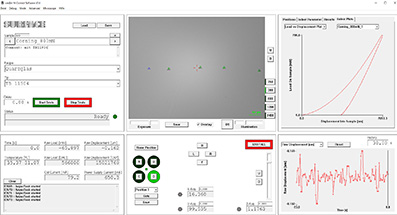

For the operator: Clearly structured control user interface
Click to enlarge
  • Control software: intuitive and clean user interface
  • Analysis software: fast selection of measurement tasks and test locations on the sample
  • Automatic data analysis
  • Editable data analysis for advanced users
  • Export to csv files
  • Sharing data and export to cloud based open material database
  • Developed from the long-standing practice of the nanoLab team
  • Optimized for fast and efficient operation
